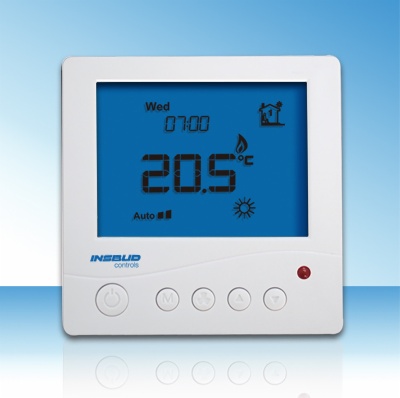

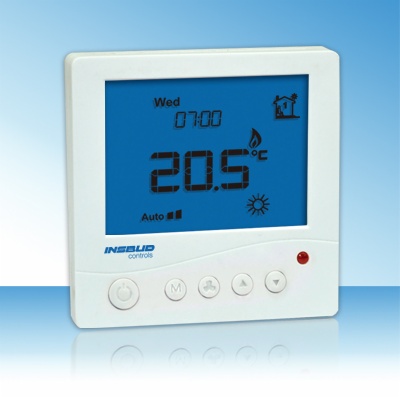

5+2 / 6+1 / 7 day programmble thermostat TR3100PRO TR3100PRO

Item Code:TR3100PRO Features:5+2 / 6+1 / 7 day programmble thermostat
  • Description
  • User Manual
  • Brochure

5+2 / 6+1 / 7 day programmble
Electric floor heating / Hydronic floor heating

1 built-in sensor
1 remote sensor

Features

* Large LCD display
* Extra slim and compact control panel
* Can switch up to 16 amps, (230v AC, 120v Ac available)
* Can be either an air only / floor only / Air & Floor
* 7 day programmable (each day can be set different).
* 4 set points per day
* Manual temporay override and vacation mode
* Frost protection function
* Blue back light optional
* White,silver plastic finishes
* F / C temperature format can be selected
* 12/24 Hour clock format can be selected
* Programmes and settings can be reserved after power break
* Equipped with air and floor sensor
* Back light turning on/off time can be set
* Floor temperature limit
* Adjustable switching differential
* Optimum start(pre-heat) function
* Pump protection(for hydronic heating only)
* 5+2 / 6+1 / 7 day programmble option
* Temperature calibrate function
* Firmware can be upgraded
* Customizing welcome


Specifications

* Power supply: 230VAC (120VAC optional)
* Inputs: 2 x NTC10K temperature sensors
* Output: 1 x switch relay(R1),max 3500watts
* Ambient temperature: 0 °C [+32 °F] ~ +45 °C [+113 °F]
* Operating RH: 0~95% (non condensing).
* Dimensions: 86mm x 86mm x13mm
* Display Size: 65 x 48mm.
* Backlight life: 5,000 hours.
* Battery type: CR 1220 (Backs up clock only)
* Battery life: > 5years (10 years Maximum)
