2 zone floor heating thermostat
radiant floor heat
non-programmable thermostat
8 amp for each zone


2 zone floor heating thermostat

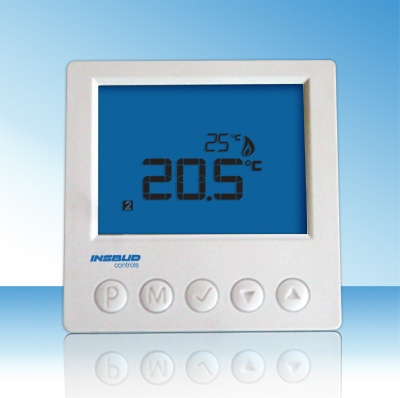

NPTR5100-2Z non- programmable thermostat for 2 zones heating system

2 X 3-meter floor sensor

Features


* Independent settings and control for each zone
* Large LCD display
* Extra slim and compact control panel
* Blue back light optional
* White,silver plastic finishes optional

* 12/24 Hour clock format can be selected
* Equipped with 2 floor sensors
* Adjustable switching differential
* Firmware can be upgraded
* Customizing welcome


Specifications

* Power supply: 230VAC (120VAC optional)
* Inputs: 2 x NTC10K temperature sensors
* Output: 2 x switch relays, max 8Amp each
* Ambient temperature: 0 °C [+32 °F] ~ +45 °C [+113 °F]
* Operating RH: 0~95% (non condensing).
* Dimensions: 86mm x 86mm x13mm
* Display Size: 65 x 48mm.
* Backlight life: 5,000 hours.



Packing Details



> 1pc/inner box, 100pcs/carton

> Inner box size: 11x10x6cm

> Carton size: 68x28x43cm
