touch screen thermostat heat /cool TS24HC

Item Code:TS24HC Features:
  • Description
  • User Manual
  • Brochure

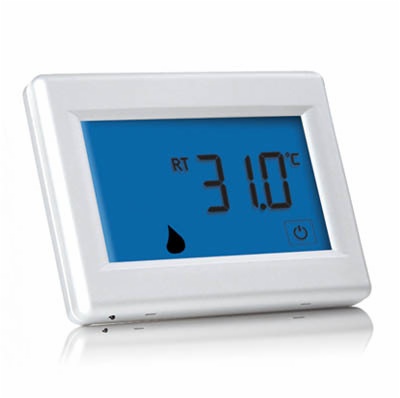

TS24HC touch screen thermostat

Heat / cool outputs 3amps each, can be dry contacts





Display
Large, 4.3-inch touchscreen display;
Blue, lighted display for easier low-light viewing;
Larger, easy-to-read character size;
Extra-large touch keys for easy operation;
Clean, uncluttered touchscreen display provides
easier navigation.



TS24HC Display

Specifications
* Power supply: 24VAC
* Inputs: 1x NTC10K built-in temperature sensor
* Outputs: 1X Zone valve or thermal valve for heating;

                  1X Zone valve or thermal valve for cooling

                   3amps each;

                   can be dry contacts(selectable by jumper)
* Ambient temperature: 0 °C [+32 °F] ~ +45 °C [+113 °F]
* Operating RH: 0~95% (non condensing).
* Dimensions:127mm x 95mm x31mm
* Backlight life: 5,000 hours.
* Battery type: CR 1220 (Backs up clock only)
* Battery life: > 5years (10 years Maximum)



Wiring Diagram



TS24HC WIRING



Packing details

* 1pc/inner box, 50pcs/caton

* Carton size: 55*42*40cm
