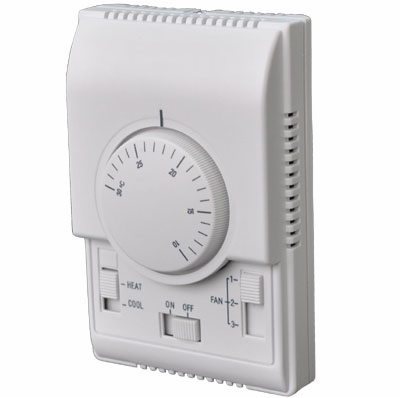

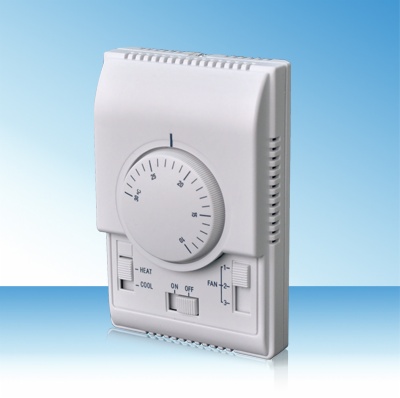

The TR201 series thermostats are designed to control
room temperature by way of on/off controlling the fan
coil units(with or without motorized valves), air
dampers in heating, cooling and ventilation applications.
Models are available for heating/cooling/ventilating
control of 2-pipe fan-coil units. It is widely used in
the civil architecture such as hotel, office building,
supermarket, factory, hospital, villa, etc.

Features

ᆷ Anti-flammable PC materials.
ᆷ Air inflated membrane box sensing element.
ᆷ Slide switch, easy to operate.
ᆷ Cool/heat selection.
ᆷ High/medium/low fan speed selectable.
ᆷ Precisely mechanical driving structure ensures
long-term operation..
ᆷ Can control 2-wired motorized damper
(2-way or 3-way), and compatible with 3-wired
motorized damper,solenoid valve or air damper.
ᆷ Surface mounting for easy installation.

Models

TR201B: control fan coil only
TR201D: control fan speed and motorized valve.
TR201F: control motorized air damper

Specifications

Power Consumption: < 2W
Set-Point Range: 10~30 deg C
Accuracy: +/-1 deg C
Max. Load: 400W
Power Supply: 230V AC 50/60HZ
Housing: Anti-flammable PC
Dimension: 85X130X40 MM
Approval: CE compliant
