Insbud Controls Company Limited

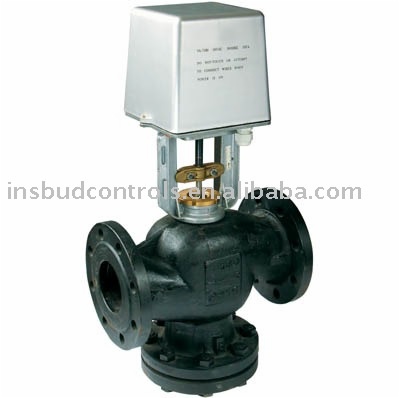

VB-7200/VB-7300 is a series of 2-way and 3-way valves intended for use in heating and cooling systems.
Suitable for hot and chilled water.

Technical data
Valve type....................2- way/3-way control valve
Pressure class...............................PN 16 (250 psi)
Flow characteristic.........Equal Percentage (Eq%)
Connection..........................................flange
Leakage....................................... <0.05% of KVS
Sizes from DN65 up to DN200
Cast iron body(stainless steel body optional)
Fluid temperature -10 to 95°C

Model	Port	Dimension	Flow Rate (KV)	Max Pressure Difference (Mpa)	Valve stem stroke
VB7200-DN65	2-way	65	63	0.8	22
VB7200-DN80	2-way	80	100	0.6	42
VB7200-DN100	2-way	100	160	0.4	42
VB7200-DN125	2-way	125	250	0.3	42
VB7200-DN150 VB7200-DN200	2-way 2-way	150 200	360 450	0.2 0.1	42 42
VB7300-DN65	3-way	65	63	0.8	22
VB7300-DN80	3-way	80	100	0.6	42
VB7300-DN100	3-way	100	160	0.4	42
VB7300-DN125	3-way	125	250	0.3	42
VB7300-DN150 VB7300-DN200	3-way 3-way	150 200	360 450	0.2 0.1	42 42
